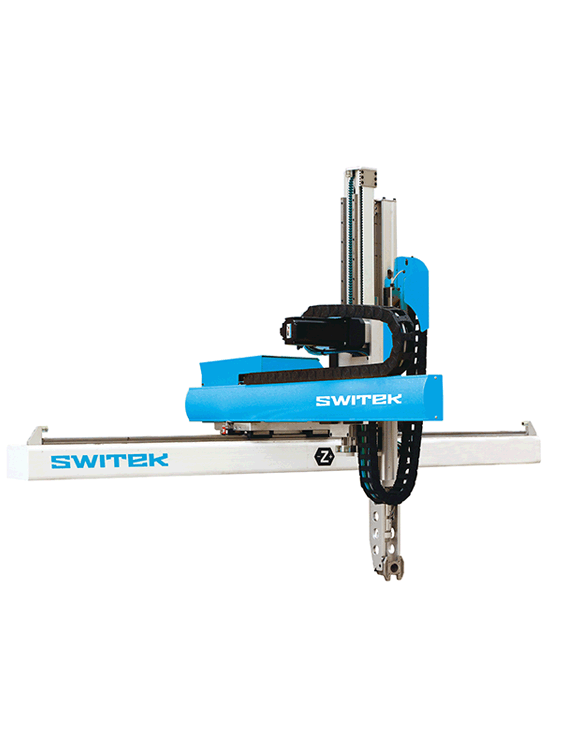

Robots 2 Servo Transverse Shafts SW52 Series
Descripción
The robots 2 axis servo transverse SW52 series are designed for quick and accurate removal of products and injection channels of the injection molding machine. These 2-axis servo robots are best suited for 150-650 T plastic injection machines with X and Y axes driven by servo motor, and Z axis controlled by pneumatic cylinder.
Ventajas
1. High Accuracy
- The telescopic arm with vertical movement minimizes the cycle time and height of the robot.
- All the movements of our 2 servo servo transverse servo robots are controlled by servo motors and are combined with precise linear rail guides and steel strips for quick and precise operations with low noise level.
- The wrist mechanism uses the pneumatically operated rack and the pinion system for precise, stable and smooth rotary movements.- The telescopic arm with vertical movement minimizes the cycle time and height of the robot.
2. Safe Operation
- Limit sensors effectively prevent mechanical and electrical failures.
- Short circuit protection I / O prevents damage to the circuit board.
- High efficiency shock absorbers allow quick and precise pneumatic action.
- Fall-resistant locking mechanism prevents accidents due to failures.- Limit sensors effectively prevent mechanical and electrical failures.
- Short circuit protection I / O prevents damage to the circuit board.
3. Standard design
